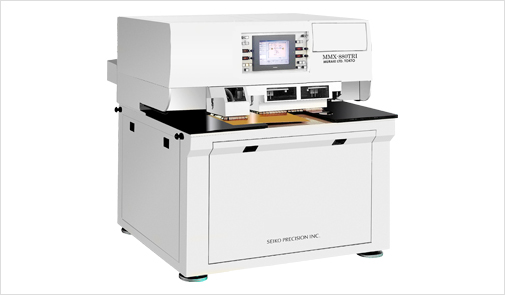

High-Speed Compensating X-Ray Drilling Machine MMX-880TRI
For printed circuit boards
-
3rd hole simultaneous drilling
-

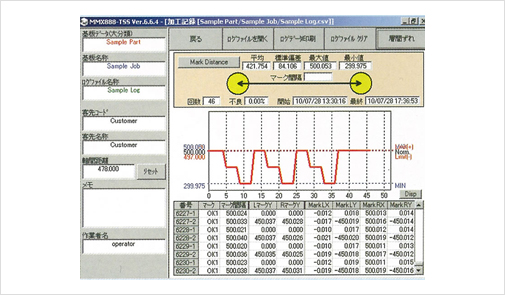

Production Control
| Product name | High-Speed Compensating X-Ray Drilling Machine |
|---|---|
| Product number | MMX-880TRI |
Functions and features

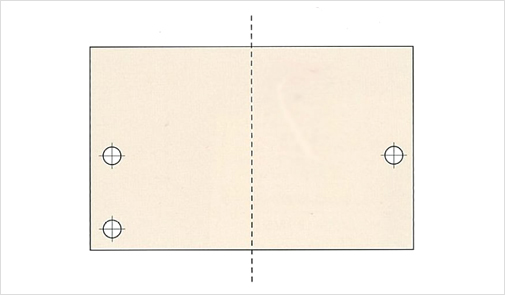

Capable of drilling a third hole for orientation check simultaneously with two reference guide holes, thereby ensuring high-efficiency production.
Capable of irradiating each multilayer PCB with X-ray to delineate and compensate the two guide mark positions thereon to the specified center distance for drilling holes therethrough.
- High-speed drilling.
- When the third hole is automatically drilled to complete the whole drilling process, each board is automatically ejected.
Equipped with a function for measuring shifts between layers of multilayer boards. - High-accuracy drilling mechanism.
- Once a board is set in place, the machine performs calculation and drilling without moving the board on the board stage, thus ensuring high-accuracy drilling with very low errors.
