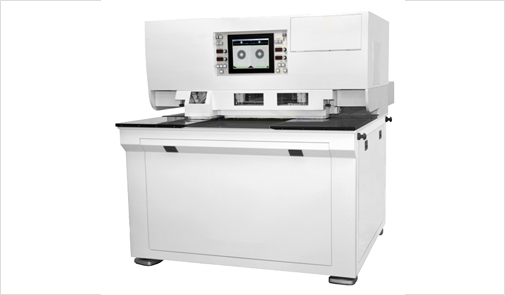

Compensating X-Ray 2-Spindle Drilling Machine MMX-880C
For printed circuit boards
-

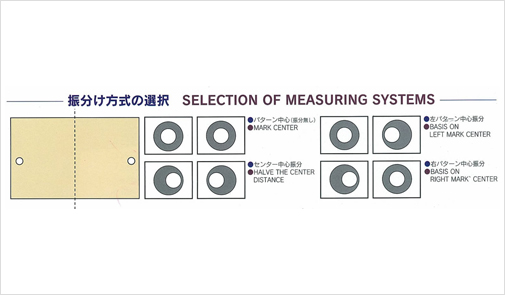

Selection of measuring systems
-

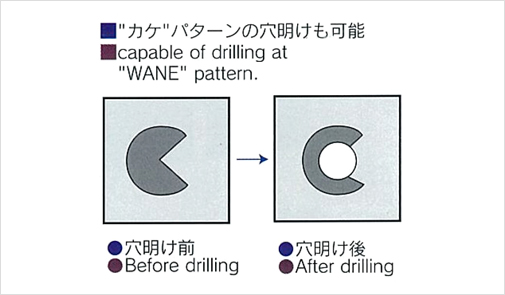

Capable of drilling "WANE"pattern
| Product name | Compensating 2-Spindle Drilling Machine |
|---|---|
| Product number | MMX-880C |
Functions and features
MMX-880C is achieved both of high accuracy and high cost performance, and this machine is manufactured based on bestseller products "Compensating X-Ray Two Spindles Drilling Machine MMX-880" which have a good sales record for many years in PCB market. Please also use X-RAY PREALIGNMENT device which is capably total automation.
- High-speed drilling.
- Equipped with two identical X-ray drilling mechanisms for high-speed, high-accuracy simultaneous drilling with two spindles. When the third hole is automatically drilled to complete the whole drilling process, the board is automatically ejected. When the interlayer misalignment tolerance is preset, only products determined as conforming will be processed.
- High-accuracy drilling mechanism.
- Once a board is set in place, the machine performs calculation and drilling without moving the board on the board stage, thus ensuring high-accuracy drilling with very low errors. Equipped with a powerful automatic correction function for long-duration stable processing.
